Various special codes

Line break

If you want to start a certain word on the next line, it is not sufficient in ClauseBase to simple hit Return/Enter, because ClauseBase ignores a single Return/Enter characters, and starts a new paragraph when you insert two or more Return/Enter characters.

You can insert a line-break by inserting two percentage-signs (%%). For example:

The following items will be purchased: %% alpha %% beta %% gamma.

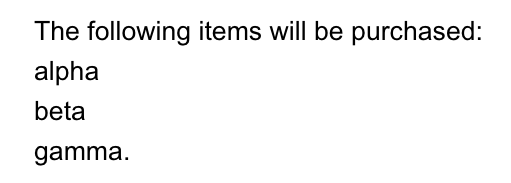

Will be printed as follows:

There is a huge difference between inserting a line break and starting a new paragraph. A new paragraph will insert another paragraph number, and may also receive extra spacing due to the space above / below styling settings. Conversely, a line break simply moves new text back to the left side of the paragraph, while technically remaining within the same paragraph.
In Microsoft Word, you can insert a line break by pressing Shift-Enter/Return (as opposed to simply pressing Enter/Return, which will create a new paragraph).

Deviating styling

In principle, all paragraphs within the same clause (file) will be styled in the same manner. While you can apply different styling through the "custom styling" settings of a file, all of this custom styling will be applied to all paragraphs.

In most cases, this is exactly what you want. However, there are situations when you want one of the paragraphs to receive a special styling that deviates from the other paragraphs of the same file. For such special situations, you can insert formatting codes between % ... % , right after the bullet (*) or numbering (1., 2.1., ...) of the paragraph. If you want to apply multiple exceptions at once, separate them by comma's. For example:

1. This paragraph will be printed with the regular styling that happens to apply to this clause.

2. % align center, font color #aaa, font name Courier % This paragraph will be centered, shown in light grey, in font Courier.

3. This paragraph will be printed in the same (regular) styling as the first one.

The following formatting codes are available — note that they all correspond to the base styling settings:

Code

explanation

align left

left-align the paragraph

align left first line

left-align the paragraph, with the first line indented

align left hanging

left-align the paragraph, with the bullet or number "hanging" at the left

align right

right-align the paragraph

align center

center the paragraph

align justified

justify the paragraph

align justified first line

justify the paragraph, with the first line indented

align justified hanging

justify the paragraph, with the bullet or number "hanging" at the left

bold true (or simply bold)

make the text bold

bold false

make the text non-bold

italic true (or simply italic)

make the text italic

italic false

make the text non-italic

underline true (or simply underline)

underline the text

underline false

remove any underlining from the text

regular caps

print the text with regular caps

small caps

print the text in small-capitals

all caps

print the text in all-capitals

keep with next true (or simply keep with next)

keep the paragraph together with the next paragraph, on the same page

keep with next false

don't force the paragraph to be printed on the same page as the next one

keep lines together true (or simply keep lines together)

ensure that all lines of the paragraph are printed together on the same page

keep lines together false

don't force the lines of the paragraph to be printed together on the same page

line spacing xxx

set the line spacing to the specified amount (as a percentage, e.g. 100, 150 or 200)

page break before true (or simply page break before)

ensure that this paragraph is started on a new page

page break false

don't force this paragraph to be started on a new page

space above xxx cm/mm/pt/i

insert the specified amount of spacing above the paragraph

space below xxx cm/mm/pt/i

insert the specified amount of spacing below the paragraph

space left xxx cm/mm/pt/i

insert the specified amount of spacing at the left of the paragraph

note that any such space will be additional space, added on top of the left-indentation that already happens to apply to the paragraph

space right xxx cm/mm/pt/i

set the right-indentation to the specified amount

font size xxx cm/mm/pt/i

set the font-size to the specified amount (typically in points — pt)

font name (or simply font)

set the font (Arial, Arial Black, Times, Verdana, Courier, Georgia, Tahoma or Impact)

font color #xxx

set the font color to the specified color

The font color is specified in so-called CSS hex format, which is a combination of either 3 or 6 hex characters (a number or a / b / c / d / e). For example, #FF0000 is pure red, while #22B61E is a green variant.

There are numerous websites and software programs that can help you find the right color — see for example https://htmlcolorcodes.com/ or https://www.w3schools.com/colors/colors_hexadecimal.asp

Signature & dotted tab

Most contracts will contain a signature section, which will typically involve printing a dotted line.

Inserting such dotted line is actually not so easy to do correctly in Microsoft Word.

Technically, the best manner is to use a right-aligned tab stop with a dotted (...) leader. See, for example, https://www.howtogeek.com/266307/how-to-add-a-tab-leader-to-a-tab-stop-in-microsoft-word/

ClauseBase allows you to easily insert such a dotted line, by inserting % signature % at the start of the paragraph, right after the number or asterisk. This will not only ensure that the dotted line is inserted, but also that sufficient space above & below the paragraph is available to make room for large signatures.

For example,

Executed in Brussels, on #contract^date.

|| ~Employer~ || ~Employee~ ||
|| %signature% Name: || %signature% Name: ||

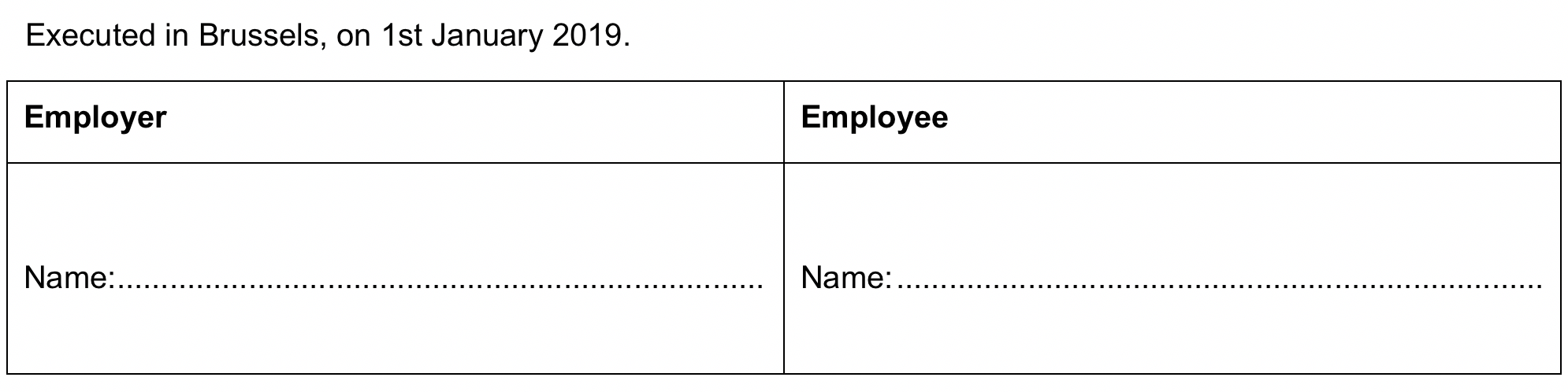

Will be printed as follows:

Instead of using % signature % you can also use % dotted % . This will also insert the dotted line, but does not automatically create space above & below the paragraph.

Exclamation marks before datafields

When you insert a datafield — e.g. #employee^name — it will be replaced by its value. However, when no value has been assigned yet, the result will be that:

  • a yellow placeholder box will be inserted when the datafield was used within body text, to invite the end-user to provide a value
  • the datafield will be replaced by the value undefined, when used inside conditions and calculations (depending on the condition or calculation, this may or may not lead to an error)

You can reverse this behaviour by adding an exclamation mark just before the datafield-name, e.g. #employee^name. Accordingly, the following will happen:

  • inside body text, no more yellow placeholder box will be shown when no value has yet been assigned to the datafield — in other words, the datafield is simply skipped in the resulting text
  • inside a condition or calculation, a yellow box will be shown, to invite the end-user to provide a value

This exclamation mark helps to resolve the following situations:

  • in body text, it is not always necessary that a datafield has a value assigned to it, so you may not always want to force the end-user to submit a value
    • Example: in some countries, only some citizens will have a middle name. When you include something like #employee^first-name #employee^middle-name #employee^last-name in the body text, you may want to force the end-user to fill in a first name and last name (because those must always be submitted in order for a contract to make sense), but you may not want to show a yellow box for the middle name, because employees with a middle name or an exception in your country. In such situation, the missing middle name will not trigger a yellow box, but it can still be submitted in other ways (e.g., in the data dashboard, or through a question in the questionnaire)
  • Some conditions and calculations only make sense when a certain value is available. If that value is not available, the calculation should immediately stop, and the user should be invited to submit the missing value.
    • Suppose, for example, that in a contract with a defined duration, you would like to calculate the termination date through {#contract^start-date + #contract^duration} . If either the start date or the duration is missing, ClauseBase will show a "missing value" error. It will be much more friendly to instead invite the user to submit the missing value — which will be the case when you use {#contract^!start-date + #contract^!duration} instead.
