API

The API of ClauseBase allows you generate documents outside of the browser interface, using Documents (or Binders) that were previously prepared within the browser. API-calls expect JSON as input (formatted in accordance with the Swagger 2.0 API). If successful, either a .docx or .pdf file will be returned.

Prerequisite: an API-key

The API requires a specific key, associated with each user-account. Such key will be a string of three digits, an underscore, and 32 more digits (e.g. “168_9b141639fdb2471bb4ed457d74a569cc”).

Please ask the administrator of your ClauseBase-account to enable the API-functionality, and provide you with an API-key.

Each API-key is associated with a specific user-account, but is at the same time independent from a user’s password. It is stored as a hash on the server, and can thus not be retrieved if lost — a new key must instead be generated in such case.

When your account is properly configured, you will see a button “batch – API” in the Data Dashboard of the assemble documents tab.

When you click this button, you will see various options related to the API. In the remainder of this page, we call this information the “API Dashboard”.

Inspecting a Document’s structure

When sending an API-call, you need to specify the ID of the Document (or Binder). In addition, you can optionally specify:

  • the language in which the Document should be generated: “en”, “nl” or “fr” (if not specified, English will be used)
  • the document-type (.docx or .pdf — if not specified, .docx will be used)
  • the contents of all relevant datafields
  • a list of styling-IDs to change the overall formatting of the Document (if not specified, the user’s default stylings will be used)
  • a list of concept-labels, to change the terminology used in a Document.

ClauseBase provides various facilities to help you find the relevant data for your API-call.

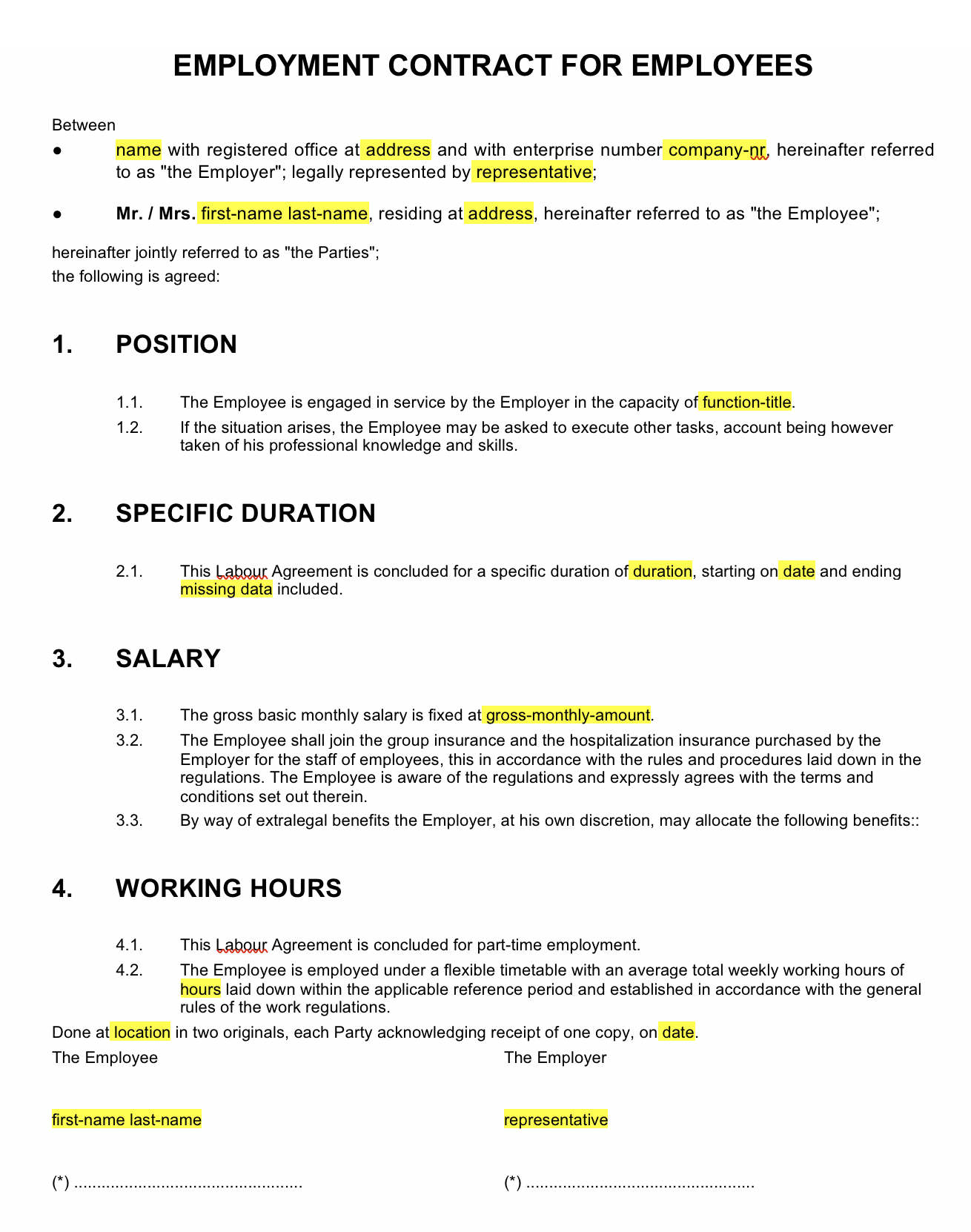

For example, assume that we want to issue API-calls to generate files on the basis of the following demo document:

Finding the Document ID

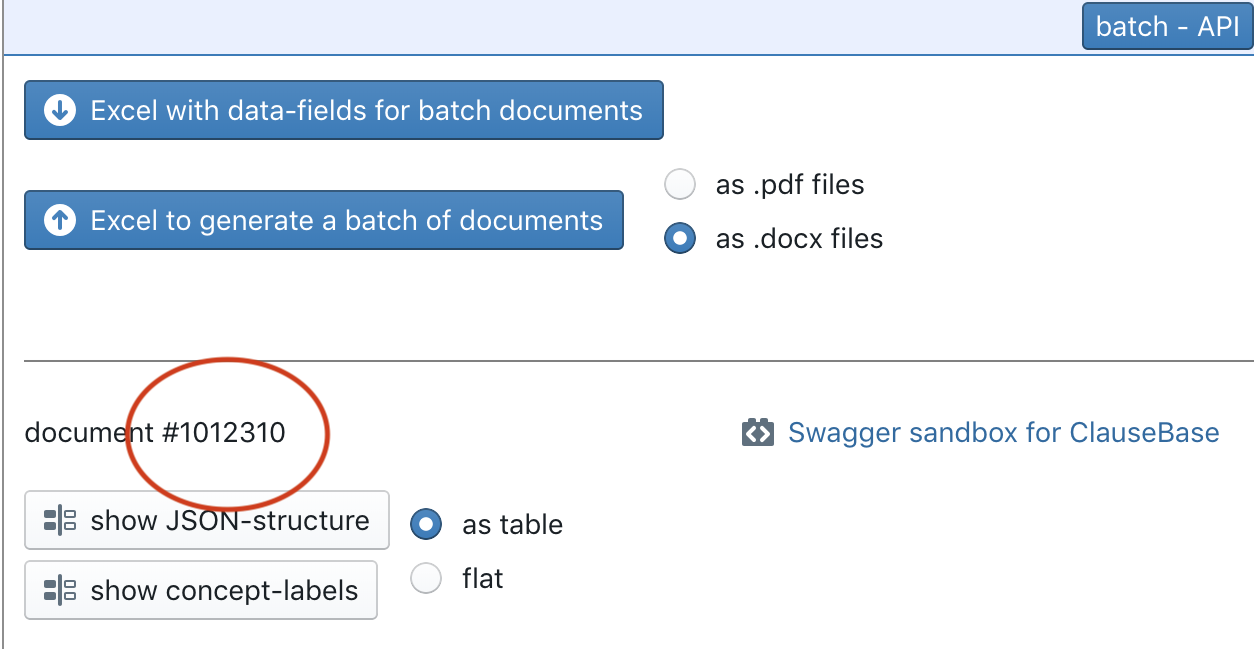

The ID of the Document (or Binder) is shown at the top of the API Dahsboard. In the example below, the ID is 1012310.

In addition, you can use the all_documents_in_account API-call (discussed below) to find the ID of all documents in your account.

Finding the datafields and their IDs

Documents will differ in the datafields they use. To retrieve an exhaustive list of all datafields used in a specific document, you can click on the “show JSON-structure” button in the API Dashboard.

All the datafields will be grouped according to their type: integers, floats, currencies, strings, string-lists, dates and durations. In addition, there is a special datafield type (“repeating lists”) that can contain a heterogeneous list of elements, typically used to fill table columns. Unfortunately, the industry-standard Swagger 2.0 API used by ClauseBase does not support heterogenous arrays, so you will have to subdivide these yourself. More on that below.

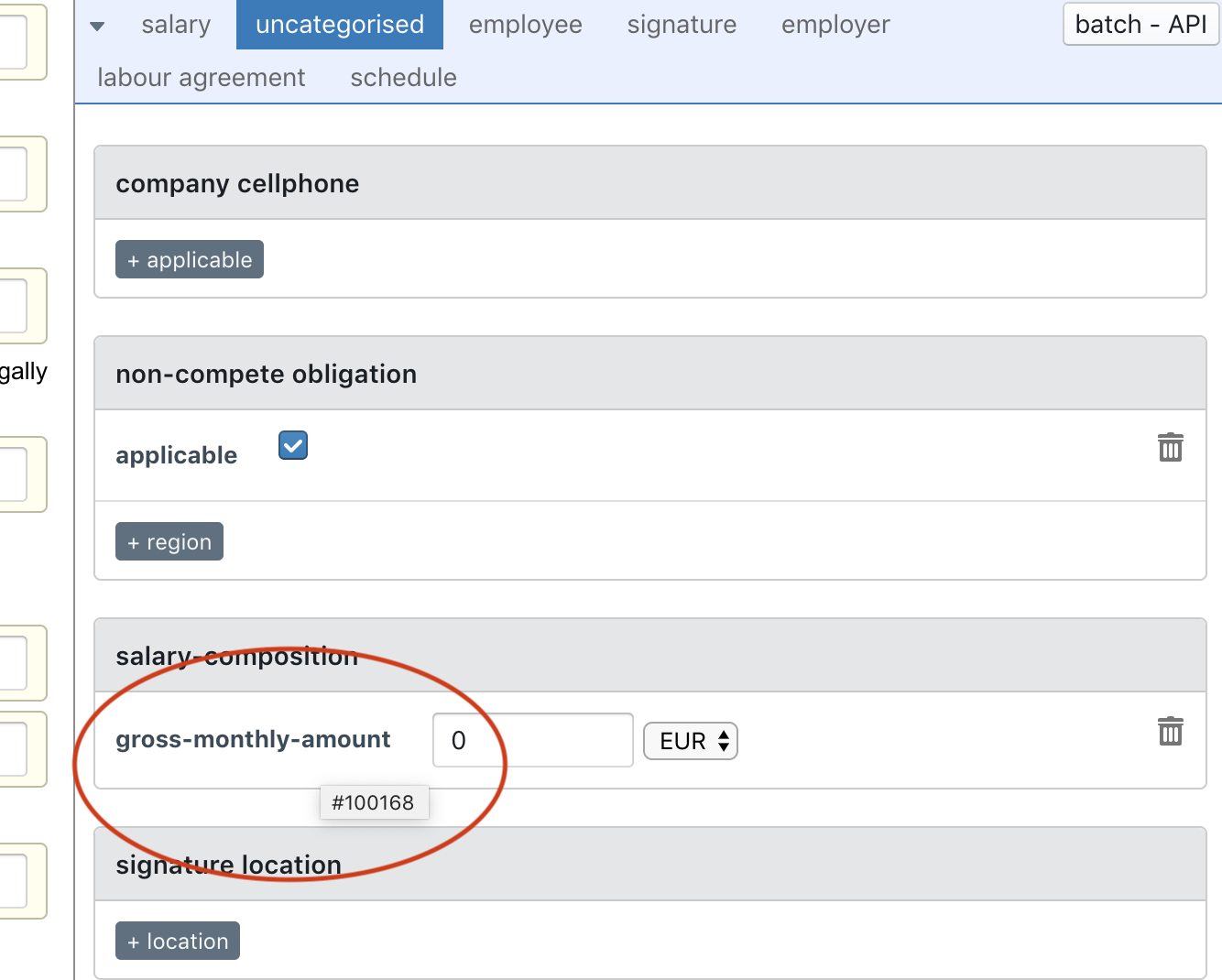

Another possibility to find all the datafields and their IDs, is to inspect the Data Dashboard (click on the “batch-API”  button to toggle between the regular Data Dashboard and the API-related content). If you hover your mouse over the name of a datafield, its ID will be shown in a small popup-window.

Be aware that — unlike the exhaustive table shown in the API Dashboard — the Data Dashboard only shows datafields that are currently in use. If, for example, a certain datafield is only used in a specific paragraph, and that paragraph happens to be hidden (e.g., because its conditions are not met), then the datafield in question will not show up in the Data Dashboard.
In addition, you can use the datafields_in_document API-call (discussed below) to find the IDs and types of datafields in a document.

Finding the Style IDs

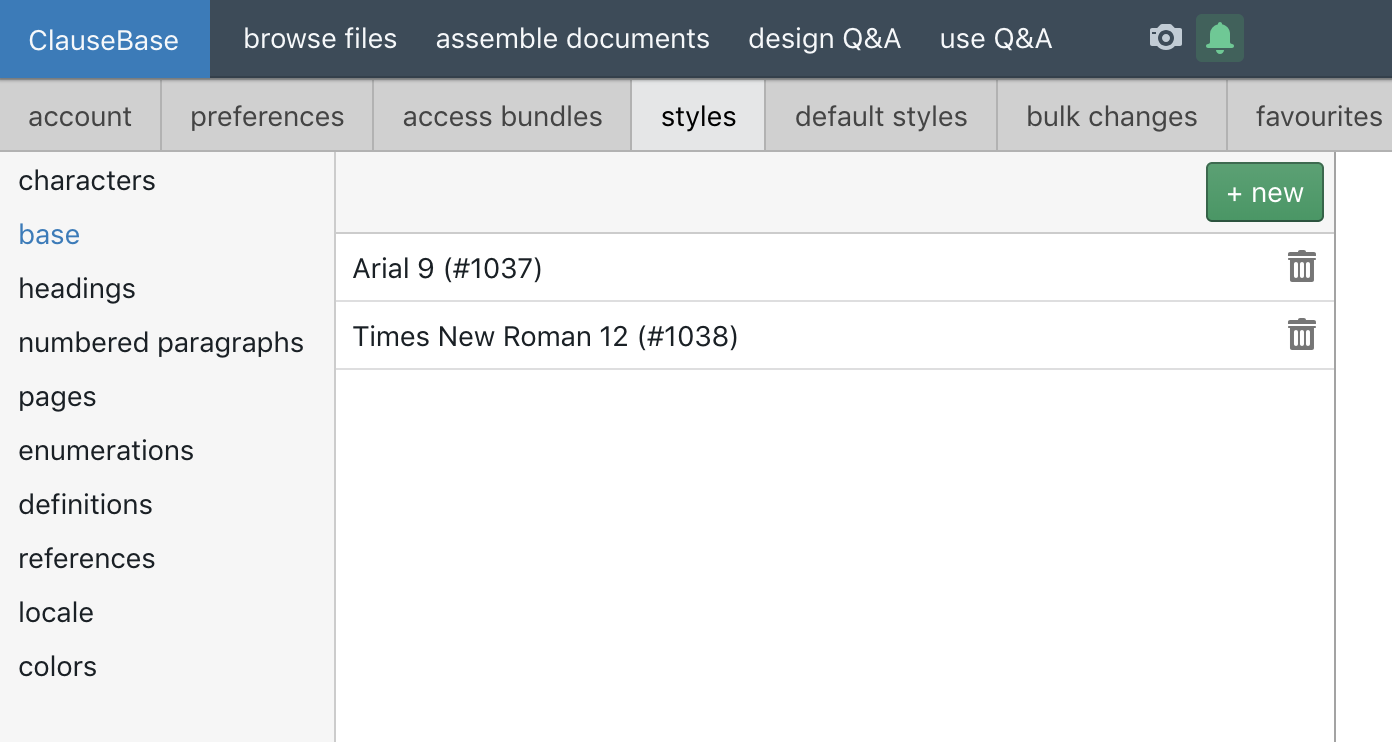

The IDs of the styles that you may want to optionally apply, can be retrieved by going to your personal styles preferences (button at the top right > styles).

In the example below, style numbers 1037 and 1038 are available to change the base font and spacing. Similarly, you can use a specific style ID to change the page-related styling, the heading-related styling, etc.

In addition, you can use the all_styles_in_account API-call (further discussed below) to find the IDs, types and names of all styles available in your account.

Finding concept-labels and their IDs

In the API Dashboard, you can click on the “show concept-labels” button to get an exhaustive overview of all the concepts used in the current Document, together with all the IDs of standard concept-labels.

In addition, you can use the conceptlabels_in_document API-call (further discussed below) to find the concepts used in a specific Document.

JSON content

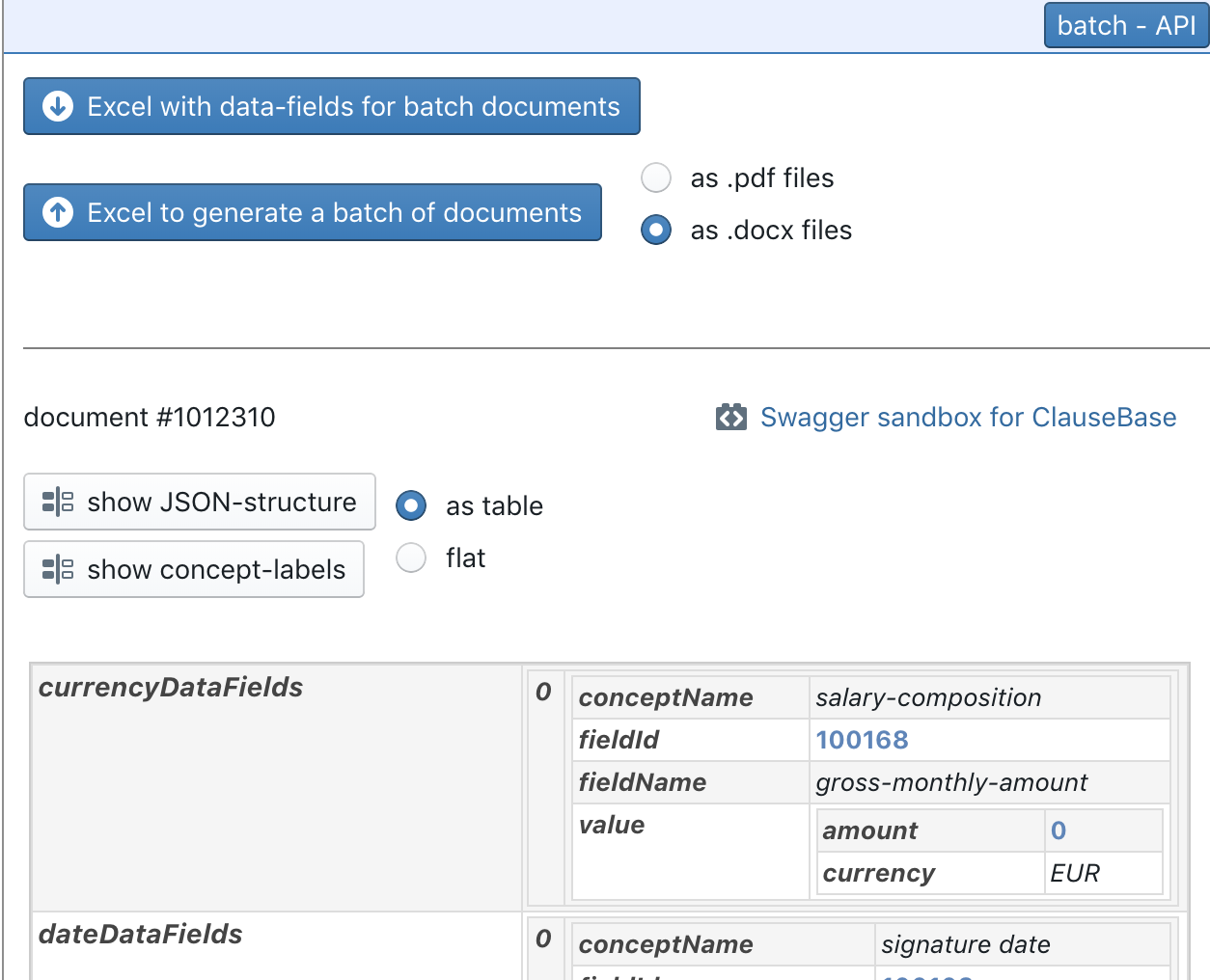

When you click on the “show JSON-structure” button, and use the flat option (instead of the “as table” option), you will be presented with a text box containing sample JSON. This JSON can be used as a starting point to experiment with the API.

The labour agreement sample we used above, will for example resulting in the following JSON-object:

{
"documentId": 1012310,
"outputFormat": "pdf",
"language": "en",
"currencyDataFields": [
{
"conceptName": "salary-composition",
"fieldId": 100168,
"fieldName": "gross-monthly-amount",
"value": {
"amount": 0,
"currency": "EUR"
}
}
],
"stringDataFields": [
{
"conceptName": "employee",
"fieldId": 100071,
"fieldName": "address",
"value": ""
},
{
"conceptName": "employee",
"fieldId": 100076,
"fieldName": "first-name",
"value": ""
},
{
"conceptName": "employee",
"fieldId": 100154,
"fieldName": "function-title",
"value": ""
},
{
"conceptName": "employee",
"fieldId": 100072,
"fieldName": "gender",
"value": ""
},
{
"conceptName": "employee",
"fieldId": 100077,
"fieldName": "last-name",
"value": ""
},
{
"conceptName": "employee category",
"fieldId": 100140,
"fieldName": "type",
"value": ""
},
{
"conceptName": "employer",
"fieldId": 100073,
"fieldName": "address",
"value": ""
},
{
"conceptName": "employer",
"fieldId": 100116,
"fieldName": "company-nr",
"value": ""
},
{
"conceptName": "employer",
"fieldId": 100075,
"fieldName": "name",
"value": ""
},
{
"conceptName": "employer",
"fieldId": 100074,
"fieldName": "representative",
"value": ""
},
{
"conceptName": "employer",
"fieldId": 100115,
"fieldName": "representative-function",
"value": ""
},
{
"conceptName": "signature location",
"fieldId": 100104,
"fieldName": "location",
"value": ""
}
],
"stringListDataFields": [
{
"conceptName": "other-salary-components",
"fieldId": 100165,
"fieldName": "descriptions",
"value": [
""
]
}
],
"dateDataFields": [
{
"conceptName": "signature date",
"fieldId": 100103,
"fieldName": "date",
"value": "2018-08-20"
},
{
"conceptName": "start-labour-agreement",
"fieldId": 100093,
"fieldName": "date",
"value": "2018-08-20"
}
],
"durationDataFields": [
{
"conceptName": "labour-agreement",
"fieldId": 100156,
"fieldName": "duration",
"value": ""
}
]
}

A few things to note about this JSON content:

  • Within ClauseBase, datafields of type “repeating list” (typically used to populate columns of tables) can be heterogeneous, i.e. a mix of element-types (e.g., a single list may contain a date, two strings, and three floats). Unfortunately, the Swagger 2.0 API does not support such mix of element-types, so you will have to subdivide such fields yourself into homogenous lists of one of the following types:
    • repeatingIntegerDataFields
    • repeatingFloatDataFields
    • repeatingCurrencyDataFields
    • repeatingStringDataFields
    • repeatingDateDataFields
    • repeatingDurationDataFields
    • repeatingBooleanDataFields
  • The “fieldName” and “conceptName” fields will be ignored by ClauseBase — they are purely for your own internal documentation purposes.
  • The sample JSON does not contain any placeholder for the optional styles. If you want to apply specific styles to the Document, then you will have to click the “show concept-labels” button, and merge the JSON objects with the resulting conceptLabels JSON-object.

Using the Swagger sandbox

You can experiment with the API by clicking on the “Swagger sandbox for ClauseBase” button of the API Dashboard, or by entering the URL directly by adding /swagger/index.html to the relevant subdomain (e.g. https://app.clausebase.com/swagger/index.html for the Belgian version). A new browser window or browser tab will then be opened, showing the standard Swagger interface.

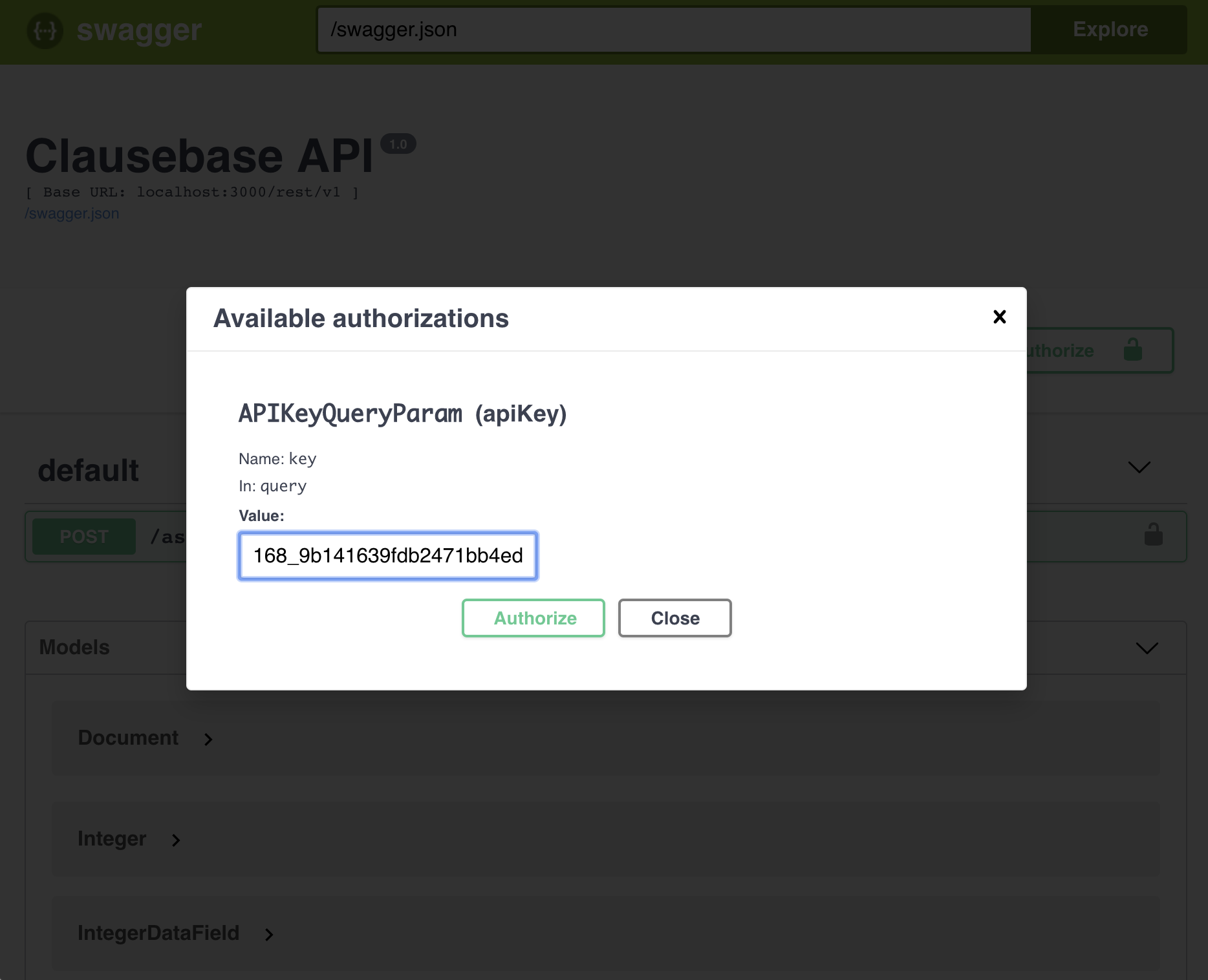

In order to try some API calls, you will first have to click on the Authorize button, and enter your private API key.

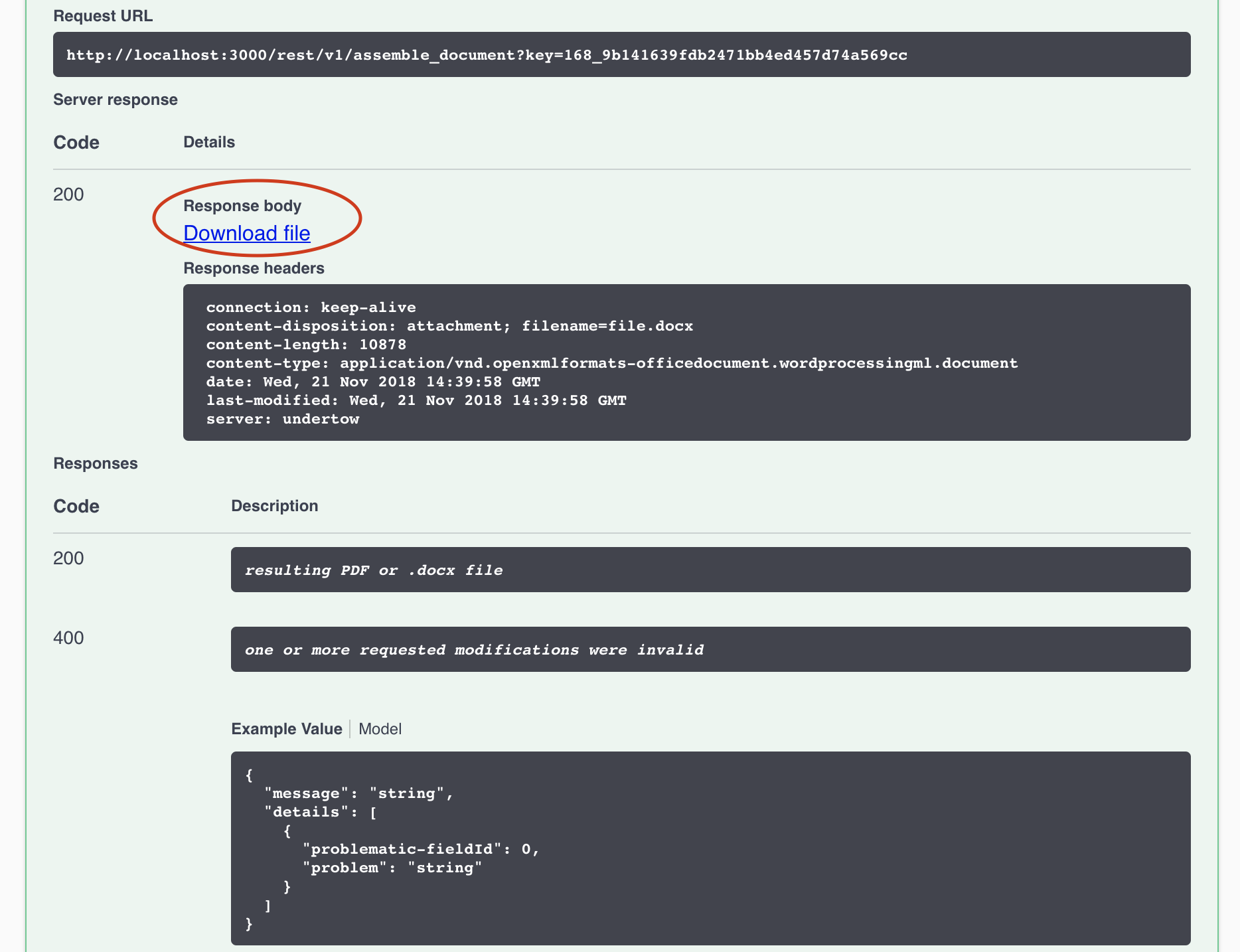

Next, you have to click on the green POST button, and then the “Try it out” button.

You will then be presented with several boxes. The most important one is the body box, where you should paste your JSON-object. Finally, you should hit the Execute-button. If successful, you can then download the resulting file.

In the bottom of the sandbox, you can also drill-down on the datafields to get more details about the allowed, required and optional values.

Some JSON-samples

Minimal

{
"documentId": 1012310,
"outputFormat": "docx"
}

results in the following .docx-file:

Changing “docx” to “pdf” would result in a similar PDF-file.

{
"documentId": 1012310,
"outputFormat": "pdf"
}

With additional styling

Styling with ID 1038 results in a base font of Times New Roman, while the styling with ID 1039 refers to a page styling that contains a header, footer and deviating title font.

{
"documentId": 1012310,
"outputFormat": "pdf",
"styles": [1038, 1039]
}

results in:

All fields filled-in

As explained above, it is not necessary to include the “fieldName” and “conceptName” fields. (We only include them here for demonstration/documentation purposes.)

{
"documentId": 1012310,
"outputFormat": "pdf",
"language": "en",
"currencyDataFields": [
{
"conceptName": "salary-composition",
"fieldId": 100168,
"fieldName": "gross-monthly-amount",
"value": { "amount": 2315, "currency": "EUR" }
}
],
"stringDataFields": [
{
"conceptName": "employee",
"fieldId": 100071,
"fieldName": "address",
"value": "Main Street 35, 1000 Brussels"
},
{
"conceptName": "employee",
"fieldId": 100076,
"fieldName": "first-name",
"value": "Jane"
},
{
"conceptName": "employee",
"fieldId": 100154,
"fieldName": "function-title",
"value": "Sales Manager"
},
{
"conceptName": "employee",
"fieldId": 100072,
"fieldName": "gender",
"value": "female"
},
{
"conceptName": "employee",
"fieldId": 100077,
"fieldName": "last-name",
"value": "Smith"
},
{
"conceptName": "employee category",
"fieldId": 100140,
"fieldName": "type",
"value": "sales representative"
},
{
"conceptName": "employer",
"fieldId": 100073,
"fieldName": "address",
"value": "Square Street 58, 2000 Antwerp"
},
{
"conceptName": "employer",
"fieldId": 100116,
"fieldName": "company-nr",
"value": "BE123456789"
},
{
"conceptName": "employer",
"fieldId": 100075,
"fieldName": "name",
"value": "Acme Inc"
},
{
"conceptName": "employer",
"fieldId": 100074,
"fieldName": "representative",
"value": "John Johnson"
},
{
"conceptName": "employer",
"fieldId": 100115,
"fieldName": "representative-function",
"value": "CEO"
},
{
"conceptName": "signature location",
"fieldId": 100104,
"fieldName": "location",
"value": "2000 Antwerp"
}
],
"stringListDataFields": [
{
"conceptName": "other-salary-components",
"fieldId": 100165,
"fieldName": "descriptions",
"value": ["company car", "extra-legal benefits"]
}
],
"dateDataFields": [
{
"conceptName": "signature date",
"fieldId": 100103,
"fieldName": "date",
"value": "2018-08-20"
},
{
"conceptName": "start-labour-agreement",
"fieldId": 100093,
"fieldName": "date",
"value": "2018-09-01"
}
],
"durationDataFields": [
{
"conceptName": "labour-agreement",
"fieldId": 100156,
"fieldName": "duration",
"value": { "amount": 18, "unit": "month" }
}
]
}

results in the following (fully completed) PDF-file:

With repeating fields

Repeating fields are typically used in tables.

Assume the following table exists in some document with ID 1012966: (#emp refers to concept employees)

|| name                             || birthday        || status           ||
|| -------------------------------- || --------------- || --------------- ||
|| #emp^first-names #emp^last-names || #emp^birthdays || #emp^is-internal ||

With the following JSON-object:

{
"documentId": 1012966,
"outputFormat": "pdf",
"language": "en",
"repeatingStringDataFields": [
{
"conceptName": "employees",
"fieldId": 100946,
"fieldName": "first-names",
"value": ["John", "Mary", "Pete", "Waldo"]
},
{
"conceptName": "employees",
"fieldId": 100947,
"fieldName": "last-names",
"value": ["Johnson", "Peterson", "Dickinson", "Gates"]
}
],
"repeatingDateDataFields": [
{
"conceptName": "employees",
"fieldId": 100948,
"fieldName": "birthdays",
"value": ["1980-08-20", "1980-07-19", "1979-01-24", "1978-11-12"]
}
],
"repeatingBooleanDataFields": [
{
"conceptName": "employees",
"fieldId": 100949,
"fieldName": "is-internal",
"value": [true, false, true, true]
}
]
}

will result in the following sample document:

Other API calls

In addition to the main assemble_documents call, there are several other API-calls that facilitate the assemble_documents call:

  • the all_documents_in_account call allows you to retrieve the ID, label and type (Document or Binder) of all Documents and Binders available in an account
  • the all_styles_in_account call allows you to retrieve the ID, name and type (base paragraph settings, heading-style, page-settings, etc.) of all styles available in an ccount
  • the datafields_in_document call allows you to retrieve the ID, label, type (integer, boolean, string, etc.) and associated Concept for each of the datafields used in a specific Document or Binder
  • the conceptlabels_in_document call allows you to retrieve the Concept-ID, concept-description and default concept-label for all Concepts that are used in a specific Document or Binder
  • the conceptlabels_for_concept call allows to retrieve the ID and contents of all the concept-labels for a combination of a certain Concept and language
  • the customer_users call allows to retrieve the user-ID, first name, last name and email of every user of your customer (or a linked customer). You must be an admin in order to make this call
  • the user_login_url call allows to get a short-lived (60 seconds) URL that will allow the requested an end-user to login
  • the create_customer call allows customers to create linked sub-customers
  • the sub_customer_ids call returns the customer-ids of all linked sub-customers
  • the create_user call allows to create new users, either in the account of the own customer, or in the account of a linked customer
  • the find_users call allows to search for users (either in the account of the own customer, or in the account of a linked customer) by specifying a first name, last name and/or email address
  • the customer_details call allows you to retrieve the details of a (sub)customer and its administrator
